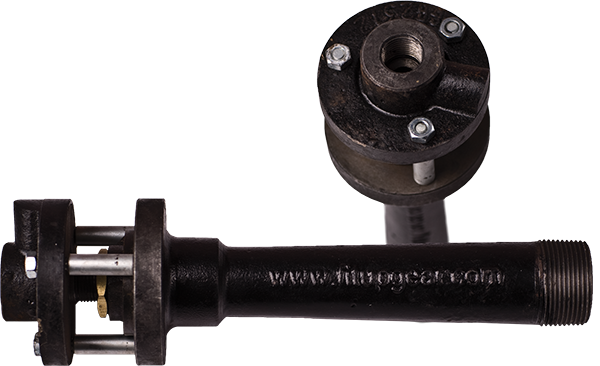

INSPIRATOR


​Used to create a regulated mix of atmospheric air (no pressure) and LP gas for uniform distribution through header assembly for preheating metal.



1/2” NPT Inlet - 1-1/4” NPT Outlet



Weight: 4.0 lbs



PART: PBI


Also see our Propane Blast Nozzle​​

Our inspirators are similar to a burner on a turkey fryer, you dial in the oxygen mix created by the venturi built into the inspirator to maximize BTU’s. Each Inspirator will feed up to 22 nozzles (Tips), generating roughly 18,800 BTU’s or around 850 BTU’s per nozzle (Tip). Our products are designed to be used with standard NPT pipe fittings, our tips are 3/8” NPT while the Inspirator is 1.25” NPT.


Need a custom built preheating system?

We can build it for you. Call us for pricing.
