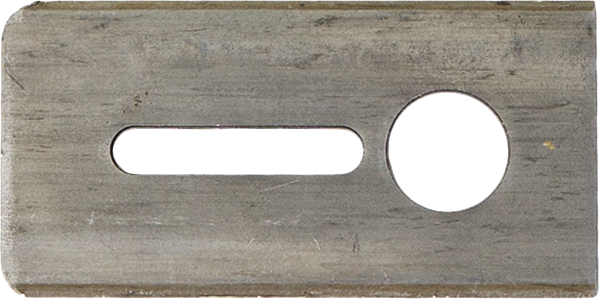

WEDGE KEY SHIM

Used for girth seam fit up on tanks and horizontal seams where a gap is required. Requires no clean-up after usage. Solely based on gravity to assist in the fit. Must be used in conjunction with Shim Pin and Wedge Pin. Works on 1/4” - 1” plate. Sold based on thickness of shim (thickness can vary due to mill tolerances).

Carbon Steel

PART: WKS-A - 13 gauge thickness (± mill tolerance)

PART: WKS-B - 11 gauge thickness (± mill tolerance)

PART: WKS-C - 10 gauge thickness (± mill tolerance)

PART: WKS-D - 1/4” thickness (± mill tolerance)

304 Stainless Steel

PART: WKS-ASS - 13 gauge thickness (± mill tolerance)

PART: WKS-BSS - 11 gauge thickness (± mill tolerance)

PART: WKS-CSS - 10 gauge thickness (± mill tolerance)

PART: WKS-DSS - 1/4” Thick (± mill tolerance)
