MAGLOGIX MULTI-PURPOSE MAGNETS

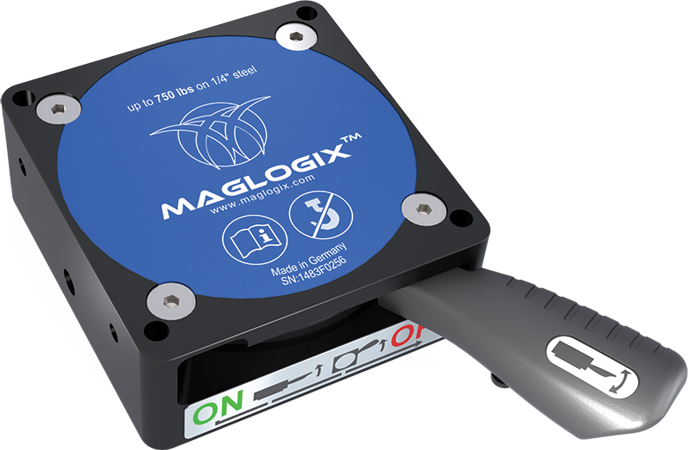

XBAM-750

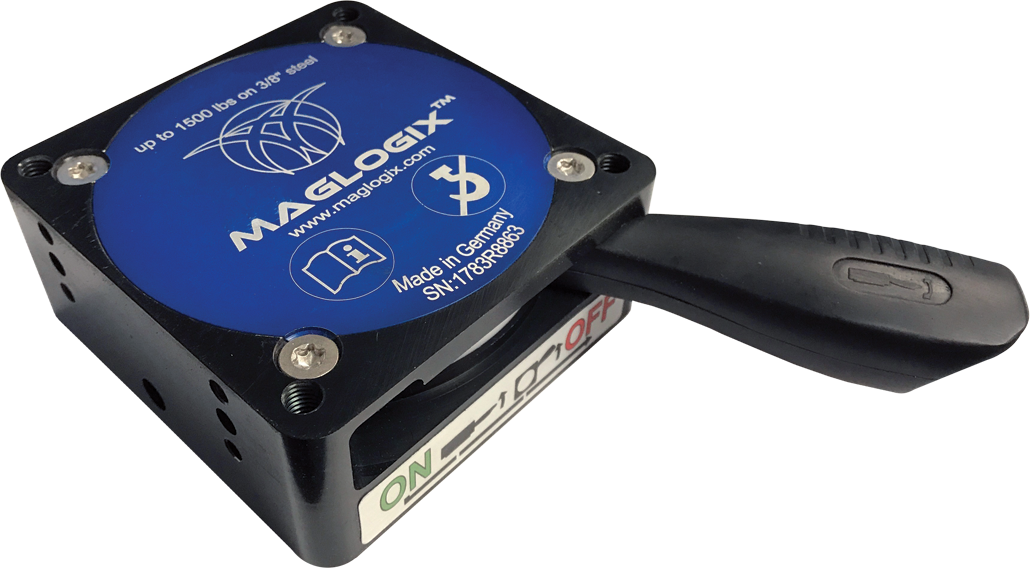

XBAM-1500

The ultimate magnets with hundreds of uses.


  • Up to 750 lbs. (XBAM-750) or 1,500 lbs. (XBAM-1500) of holding force even on .25” plate steel (breakaway)
  • Incredibly lightweight and easy to handle
  • Easy actuation for rapid on/off control. Handle locks on for safety—lift the handle up to release
  • M5 tapped holes on two sides and M6 on the top for attachment of user designed accessories
  • Incredible shear force holding power for greater grip in vertical applications
  • Hardened steel base with TiN coating for long lasting flatness and fewer airgaps caused by damage to the base
  • Ideal for plate levelling, platform building, fixturing, and work holding of all types
  • Ultra-compact magnetic field allows for welding as close as .5” (max. temperature 176° F)


PART: XBAM-750

3.15" long X 4.5" W (including handle) X 1.28" H

Weight: 2.44 lbs


PART: XBAM-750R (for use on round steel)

3.15" long X 4.5" W (including handle) X 1.28" H

Weight: 2.44 lbs


PART: XBAM-1500

4.15" long X 7.3" W (including handle) X 1.8" H

Weight: 5.25 lbs

Also works on round steel
